What is C-Wire? What do I do if I Don’t Have a C-Wire? Complete Guide

A thermostat is the one thing your house cannot forgo, especially if you use heating or cooling systems like electric furnaces or heat pumps.

The thermostat, despite usually being only a handful of buttons, controls the variety of options that entail keeping your house warm and buzzing during the winter and keeping it cool and relaxing during the summer.

What is a C-Wire? - A Complete Guide to C-Wires

The c-wire on your thermostat is it? Let's investigate. The bundle's blue wire serves as the common wire in most situations. It doesn't matter which color wire is used for each function, such as heating, air conditioning, or a fan, as long as it is attached where it should be on each end because all colored wires are identical.

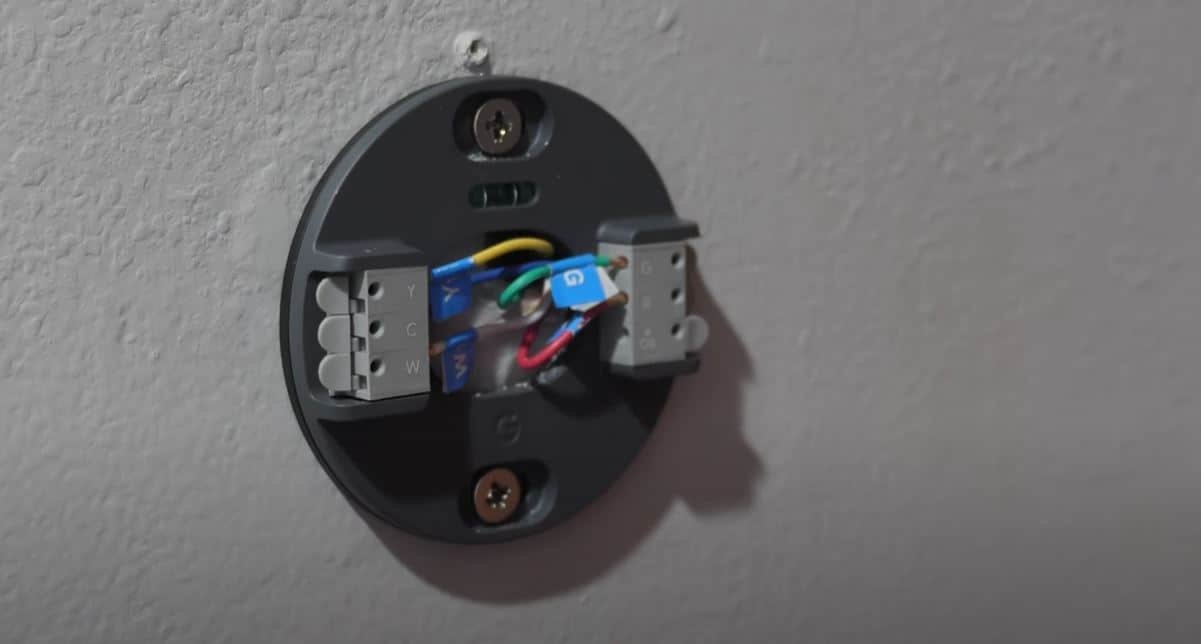

The thermostat must first be taken out of its mounting base to reveal the wires and the terminal to which most or all of them are connected. Look for the C terminal. Does it have a wire attached to it? The common wire will typically be blue in color. If there isn't a wire attached to the C terminal, gently remove the wiring bundle from the wall to check if a C wire is present but unattached. If so, connect a C wire to the air handler/furnace and thermostat as described in option 2 below.

Nowadays, thermostats come with a wide array of features that allow modern-day house owners to not only automate the device to be self-controlling and energy-efficient but also with technology that helps them to connect with your phone through WiFi, your Virtual Assistants around the house like Alexa and Google, etc. Premium thermostats even go as far as sensitizing themselves to your weekly routine and auto-adjusting themselves according to your needs. They are constantly learning and growing.

Your thermostat relies on a steady and constant supply of 24V power that provides energy so it can perform at its best. This is where the C-Wire comes in. The C-Wire is the backbone of your thermostat.

The C-Wire gives your thermostat a consistent 24 Volt power so that your device can always correct its temperature readings and execute the rest of its features without any glitches.

The ‘C’ means ‘common’. It is a common, uninterrupted return path to power your thermostat without messing with the other wires that connect it to the heating system.

How Do C-Wires Work?

Common wire, also known as C-wire, is not as widespread as you might think. It supplies your thermostat with constant 24-volt power by closing the circuit. The color of the wires in your thermostat—which are frequently blue or black—does not actually indicate how they work; rather, it serves as a shortcut to facilitate installation. Other wires that supply power to your thermostat include:

R-wire (power), typically red

Fan with a green G-wire

Cooling Y-wire, typically yellow

Heat, usually white W-wire

Remove the faceplate of your thermostat and see if any wires are connected to the C-terminal to determine whether your system already uses a common wire. When installing your thermostat, you have the following five options if the terminal is empty.

Why do you need a C-Wire? - A Complete Guide to C-Wires

With the rise of smart homes, many homeowners have chosen to replace their antiquated technology with brand-new smart locks, lightbulbs, and even thermostats. Smart thermostats can lower your energy costs because they are simple to use and programmable. Additionally, they frequently have more features, such as Wi-Fi connectivity and LED screens, and a sleeker appearance.

The C-wire is used to provide the necessary power for these amazing new capabilities to work. Your new thermostat might require a little extra power to run all those brand-new, cutting-edge features, even though your old thermostat may have operated with regular batteries. It is right to assume that the c-wire is an important part of your heating and cooling system. But if you’re still wondering why here’s a summary of what a C-Wire can do for your thermostat:

As aforementioned, thermostats today are bulked up with tons of features that require energy. The C-wire is a constant power source to your thermostat and will ensure that it gets everything it needs to show off its features. Some thermostats today are wireless and come with Smart features, and the companies often boast that they are just as well without a C-wire. However, even if a C-wire is not an absolute necessity, it would definitely improve the quality of work done by your thermostat.

In my opinion, it is even more crucial if your thermostat is wireless—living on battery and WiFi alone, both of which have the common ability to simply expire or extinguish, leading to your thermostat being unable to do its job. You can avoid the hassle of changing the battery every few months, too, when your device has a secure and steady connection through the C-Wire.

How to Identify a C-Wire? - A Complete Guide to C-Wires

At this point, if you’ve understood just how relevant a C-wire is, you’re probably wondering if your thermostat has one too. If this small introduction to the c-wire has sent you panicking with the idea that you need one instantly- we advise you to inspect your thermostat first.

Chances are, you already have a C-Wire that your technician must have inserted during the time of installation. Here’s a simple way to figure out if your thermostat has an intact c-wire:

Before anything, ensure that your thermostat is powered off to avoid any safety hazards. Once you’re sure that the system is under complete shutdown, you may detach the device from the walls to get a good look at the wiring situation underneath.

The easiest way to identify a c-wire is to look at the wires and their corresponding connected terminals carefully. The terminals may be lettered. If you see a wire running directly into the terminal called ‘c’- you’ve found your c-wire.

However, if you don’t find a wire going into the ‘c’ terminal, you’re probably a c-wire short, but don’t lose hope! You can check for any extra loose wires. It is possible that your technician left it unfit.

Another way to check for the c-wire is to refer to the HVAC control board. Again, if you find a wire connected to a terminal labeled ‘c’, you’re lucky.

Calm your sinking heart for those of you who have yielded no results thus far. A c-wire is a big deal, but it’s not as difficult to obtain or install it now!

Fixing the C-Wire Issue - A Complete Guide to C-Wires

So, you’ve discovered that your technician betrayed you by omitting a c-wire in your thermostat installation. No worries! You got your own back. These tips below should help you figure out how to add a c-wire to your thermostat without much hassle.

A New 24V C-Wire Adapter - Fixing the C-Wire Issue

This is a new alternative to the c-wire problem. Usually, most users find this convenient yet unfavorable because it takes down the appearance points for the thermostats by a few points.

This is especially true if you have a Smart thermostat with soft and attractive visuals- an extra adapter can ruin homely vibes. Nevertheless, this is as good a solution and really simple too!

The 24 Volt adapter is a transformer with two wires. You can stick the adapter into any regular outlet and switch it on while connecting the other two wires to the thermostat. In this case, the two wires technically become the c-wires.

By simply switching on the outlet, you can provide your thermostat with a constant power supply through your adapter.

While you can certainly dig around in your local hardware store for this, you’ll also find 24V adapters that cater specifically to smart thermostats so you could look out for that.

Power-Stealing Thermostats - Fixing the C-Wire Issue

If you haven’t purchased a thermostat yet, or maybe you’ve run into this problem with your previous thermostat, it’s time for a replacement. The power-stealing thermostat is a great way to bypass the C-wire requirement while ensuring that your thermostat is adequately supplied with power.

Power-stealing thermostats don’t have a C Wire, but they attempt to steal a small supply of power from the circuits and use it to recharge the batteries. So, instead of replacing burnt-out batteries with new ones, the batteries are recharged by extracting power.

However, be aware that power-stealing thermostats are not all sunshine and rainbows- they can be quite draining on both your electricity bill and the thermostat, as they can steal power from your HVAC circuit when the unit is off (leading to switching on the thermostat unnecessarily), and can deteriorate the charging threshold of your thermostat, leading to consumption of more power in the future.

Additionally, thermostats without a c-wire, as you know, are not entirely accurate as compared to those constantly powered by a c-wire. They may be messy in their performance.

An Unused Wire or a New Wire - Fixing the C-Wire Issue

If you found a wire behind your thermostat, not connected to any terminal, it is probably not being used. But only if it is unconnected on the other side as well.

If you’re planning on converting this into your c-wire, it's best to call in a professional for this job as they can figure out if the wire can be adapted to being a c-wire and install it safely and harmlessly.

You can also avoid the seed of hesitation altogether by simply installing a new wire. However, this process has its own drawbacks, especially if you’re trying this on a fully functional house. Forging a connection between the thermostat and the control board through a new wire would mean you have to find a way to pull the wire through the walls without breaking them down.

An ‘Add-a-Wire’ Kit - Fixing the C-Wire Issue

This is considered an easy and feasible solution compared to the other alternatives. You’ll have to pay a little, but the kit requires a simple, easy process that won’t take up much of your time or mental peace.

You simply have to install it on the control board with a screwdriver. A guiding manual should help you through the process. As long as you turn off the power, you wouldn’t be risking safety either. So, it can be a DIY process if you want it to be.

Replace the G Wire - Fixing the C-Wire Issue

The G wire is in charge of the fan mode on your heating/cooling system. If losing the fan mode doesn’t bother you, then you can try to transfer the G wire to the C terminal and use it as a power source. We recommend hiring a professional to avoid the potential risk of damaging your heating/cooling system.

Conclusion - A Complete Guide to C-Wires

The c-wire may be barely noticeable, but it is one of the most significant parts of your house’s heating/cooling system. It improves the quality of your thermostats working by a bunch and ensures that temperature readings are as accurate as they come.

This article, thus, is aimed at helping you find alternatives to a c-wire if your thermostat is missing that- as your device must have a consistent power source. If you made it this far in the post, "I hope I was able to solve your problems,

Related: Articles You May Like

Option 1: Take no action

There are a few that are smart enough to know that they are getting older and do not need to turn the thermostat up. This claim is false, though, when it comes to smart thermostats. Even though your thermostat doesn't technically require a C-wire to function, it still uses "phantom power" or "power stealing" to supply power to its screen and Wi-Fi capabilities. In essence, this means that whenever your HVAC system is running, your thermostat receives a boost in power.

How does this actually appear? Power stealing can go unnoticed by some people. Others lament that their Wi-Fi loses connection and that their furnace constantly cycles.

Option #2: Search for a Hidden C-Wire

As was already mentioned, older thermostats can operate without a C-wire. However, the bundle of thermostat wires hidden in the wall may still contain an unused C-wire.

Simply shut off the power to your system and open the thermostat's front plate to inspect the current wire connections. Pull the backplate and the wires forward by gently unscrewing them from the wall. A wire sheath with numerous colored wires sticking out of it will be visible.

You can use an extra wire as a C-wire if you see it wrapped around or taped to the sheath. Replace the front plate, reconnect the hidden wire to the C-terminal, and reattach the thermostat to the wall. After that, proceed to your furnace and take the panel off to reveal the circuit breaker. R, G, Y, W, and C terminals should be visible somewhere along the side. Close the panel, connect the C-wire to the C-terminal, and restart the system.

Third option: Convert a G-Wire to a C-Wire

If there isn't a hidden C-wire, a G-wire can be used in its place. However, if the heating or cooling is off, you won't be able to use your fan on your own. Additionally, this solution is incompatible with a variety of HVAC systems, including:

HVAC units that use electricity as heat

HVAC systems with two wires for heat only

You must do this by disconnecting your old G-wire from your G-terminal and connecting it to the C-terminal on the furnace and thermostat. To connect the now-empty G-terminal to the Y-terminal on the furnace circuit board, you will also require a tiny jumper cable.

Option #4: Get a Converter

A separate adapter can be purchased online or at a home improvement store, but many smart home kits already include their own. They come with a box containing new wires that you will mount on your furnace control panel and a diode that divides the current from one of your existing wires into two new wires.

Start by taking a picture of the wire connections as they are right now inside your thermostat and on the circuit board of your furnace. If you get lost while disconnecting and reconnecting wires, this will be helpful.

Follow the instructions in your kit or a tutorial online for the best results. To give you a sense of what you'll need to do, here is a summary guide:

Thermostat C Wire

  1. The thermostat's face plate should be removed.

  2. Change the existing wire's G-terminal to C-terminal position.

  3. You should unplug your current Y-wire. Now there should be no one using the G and Y terminals.

  4. Your old Y-wire can be connected to the diode's one-wire side using a wire nut.

  5. The two additional diode wires should be connected to the free G and Y terminals. Now there should be wires on five terminals.

  6. The wall thermostat needs to be replaced.

Furnace C Wire

  1. Open the panel on your furnace.

  2. The box should be fixed to the control panel.

  3. Along with your current R-wire, attach the new red wire to the R-terminal.

  4. Connect the C-terminal to the fifth new wire (the common wire, most likely brown in color).

  5. Similar to how you did inside the thermostat, unplug and reconnect the remaining wires to the terminals. (Remember to connect the old Y-wire and move the old G-wire to the C-terminal.)

  6. Your old Y-wire can be joined to the wire that matches the diode's color using a wire nut.

Installing new wires is option #5.

Naturally, you always have the choice to install new wires entirely to get a working C-wire without making modifications or giving up the ability to use your fan. Even though you can try to do this on your own, you might feel more at ease hiring a pro.
